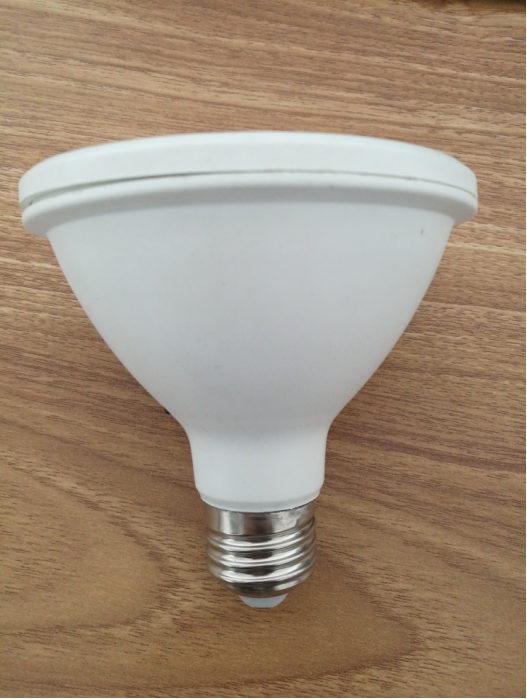

PAR 30

PAR 30

Seiko design, Seiko building, elegant and solemn shape.


Using Cree, Lumileds original LED chip + international well-known brand driving power, long life, low depreciation.


Multi-channel convection heat dissipation technology, high heat dissipation module design, fast and uniform heat dissipation.


Independent electric box and module, drive with waterproof fast interface plug, can be replaced on the spot, convenient maintenance.


The design of patent double lightning protection to ensure the normal use of lamps and lanterns under bad weather conditions.


Elevation adjustable installation design, multi diameter lamp arm installation interface, adapt to various road transformation.


The luminaire has strong illumination, good color display, soft light and good uniformity.
Return
技术规格书Doc.No.:
Par30灯/11W/3000K/E27/100-250V/塑包铝/12SMD/PF0.9/IC/950LM/RA80/过EMC/过巴西认证/LUZ编制日期2017-4-1
JK1/2页(Page)
 成品编码99.205.1.2.102   99.205.1.6.102
1基本规格 General specifications
   单位    指 标  Value
1>产品类型 Product type/Par30-11W
2>发光角度 Beam angledegree38
3>安全标准 Safety assurance/GB 24906
4>调光非调光 Dimmable or non_dimmable/非调光
5>灯头材料 Base Material E27/铝镀镍
6>泡壳材料 Bubble Material/PC+铝

2光电参数 Performance Parameters Unit最小Min额定Spec最大Max测试条件(Test Condition)
1>电源电压  Supply  VoltageVrms100220250额定电压下,25±2℃,灯头向上,点亮1小时稳定后测试                             rated voltage,25±2℃, Base Up test after 0.5 hours light-on and stable         (灯珠焊盘温度是96.1度)1000H<15%光蓑
2>电源频率  Input  FrequencyHz505050
3>输入电流  Input  CurrentArms0.044 0.054 0.088
4>输入功率  Input  PowerW9.91112.100
5>功率因数  Power Factorλ>0.7>0.7/
6>工作频率  Ballast Operation  FrequencykHz65kHz-80kHz
7>光通量  luminous  Flux  2700Klm///
3000Klm855950/
4000klm9001000/
6500klm9001000/
8>显色指数  Colour  rendering  index Ra>80//
9>平均寿命  Lifetime ( 70% failure )hrs15000//
10>电磁兼容EMC ok

3产品外形尺寸 Product figure and dimension 单位    指 标  Value
Unit最小Min额定Spec最大Max备注
1>灯总长Overall Lamp Length(A)  E27 Basemm94.69595.4
2>灯总宽Overall Lamp Wide(B)  /mm94.89595.2
3>泡壳外径  Overall  Housing Diameter(C)mm94.89595.2



































版本号修改日期 修改理由 设计审核 会签审批
1.02017-4-1初版
